KwikDial® Series


KwikDial®, the ideal residential controller from Irritrol®, offers a unique combination of sophisticated features and simple operation. Excellent scheduling flexibility is provided by its automatic, semi-automatic and manual operations, a wide range of watering intervals, and the ability to make percentage changes to watering duration for seasonal adjustments. Peace of mind is ensured by the controller’s electrical surge protection, a self-diagnostic, electronic circuit breaker and built-in memory that maintains time, date and programming information for 24 hours in the absence of AC power. Now, when automatically adjusted by Irritrol's new, optional CLIMATE LOGIC® Weather Sensing System, the KwikDial becomes a smart, climate-based controller.


Locate a Distributor

Watch Videos

Key Features

Climate Logic® compatible

Automatically reschedules Rain Dial-R, Total Control-R and KwikDial watering based on the weather

SMRT Logic® compatible

Provide remote control from any internet connected device

Compatible with CRR Series hand-held remote system

Provides convenient remote station start/pause/resume/off capability (R-100-KIT) for supplemental watering or inspection

Three independent programs

Allows differing watering days, start times, station run times and station assignments

Sensor hookup with bypass switch compatible with irritrol’s RainSensor™ Series

Saves water by shutting off the system during rainfall

Full family of indoor and outdoor models

Ensures a product to match any landscape

Multiple watering day options

  • Provides flexibility to meet water restrictions and diverse plant requirements
  • Days-of-the-week watering
  • Odd/even date watering with 31st day skip
  • Repeating-day-interval watering (every day, every 2nd day, every 3rd day, etc., up to once every 31 days)
  • Excluded-day option, when used with the Odd/even day or day-interval

Self-diagnostic, electronic circuit breaker

Identifies and overrides an electrical “short” in a valve or in valve wiring and continues to water operable stations

Electrical surge protection (on both input and output lines)

Resists damage from lightning storms and power surges

5-year warranty

5-year warranty

Capacity
One station valve plus a master valve (or 24 V ac pump start relay) on at a time
Maximum Output per Station
24 V ac, .4 amp
Maximum Total Output
24 V ac, .8 amp (including master valve)
Start Times (Number of Start Times)
3 per program for up to 9 daily starts
Station Run Times
1-240 minutes (4 hours) in 1-minute increments
Transformer Input
120 V ac, 60HZ (220/240 V ac, 50 Hz)
Transformer Output
24 V ac, .830 amps

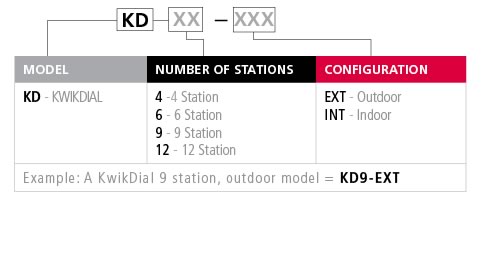

Models Description
KD4-EXT
 4 -Station Outdoor
KD6-EXT 6 -Station Outdoor
KD9-EXT
 9 -Station Outdoor
KD12-EXT
 12 -Station Outdoor
KD4-INT
 4-Station Indoor
KD6-INT
 6-Station Indoor
KD9-INT
 9-Station Indoor
KD12-INT
 12-Station Indoor
Dimensions Description
Outdoor H: 9”, W: 6 7⁄8”, D: 4”
Indoor H: 8 7⁄8”, W: 6 1⁄8”, D: 3”

CL-100-Wireless Weather Sensing System
SMRT Logic Wireless Gateway
CRR remote series (R-100-KIT)
R102-5476 (16x20 pin adapter) cable
RFS1000 wireless rain/freeze sensor
RS500 wired RainSensor™
