2. Sensors
  3. Flow Sensors

Flow Sensors


Flow Sensors can be used in conjunction with any Sentar IITM or Rain Master EagleTM controllers to automatically detect line breaks as well as measure flow limits at point of connection (POC) and individual stations. Should a break or leak occur, the controller will shut down the master valve to prevent significant landscape damage.

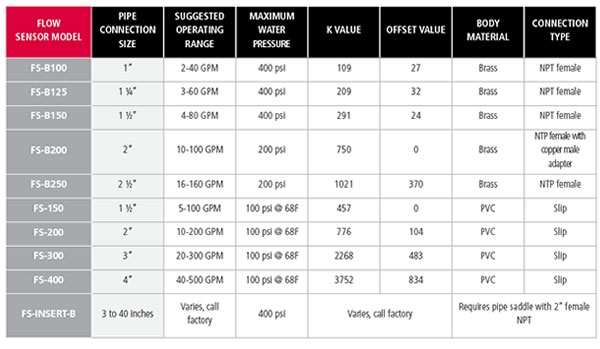

Key Features

Brass flow sensor adapter

Sizes 1” thru 2.5”. Flow ranges from 2 GPM to 160 GPM, NFPT connections, rated up to 400 psi

Impeller flow sensor adapter

For all pipe materials and sizes up to 40” in diameter. Mounts in a 2” NPT threaded outlet (NFPT) or pipe saddle (not included). Must be field-calibrated onsite. Flow may be set from 2 GPM to 500 GPM. Call factory for specific settings. 400 psi maximum operating pressure

Plastic flow sensor adapter

Sizes 1.5” thru 4”. Flow ranges from 5 GPM to 500 GPM, Schedule 80 PVC “slip” glue connections, rated up to 100 psi

Not Applicable
